Assembly of a PCB for a Medical Respiratory Application


At Circuits By US, we provide reliable electronic components and assemblies, many of which are used in critical applications. These products are used world-wide in the respiratory field; physical therapy field and in chiropractic and sports medicine. New applications now include the veterinary field and plastic surgery and home healthcare fields. This assembly is used in a medical respiratory application and meets all IPC-A-610 Class II standards. Class II standards are used in situations that call for very high quality construction such as medical equipment or high end consumer products. Inspections for Class II circuits are much more rigorous than those for Class I consumer grade electronics.

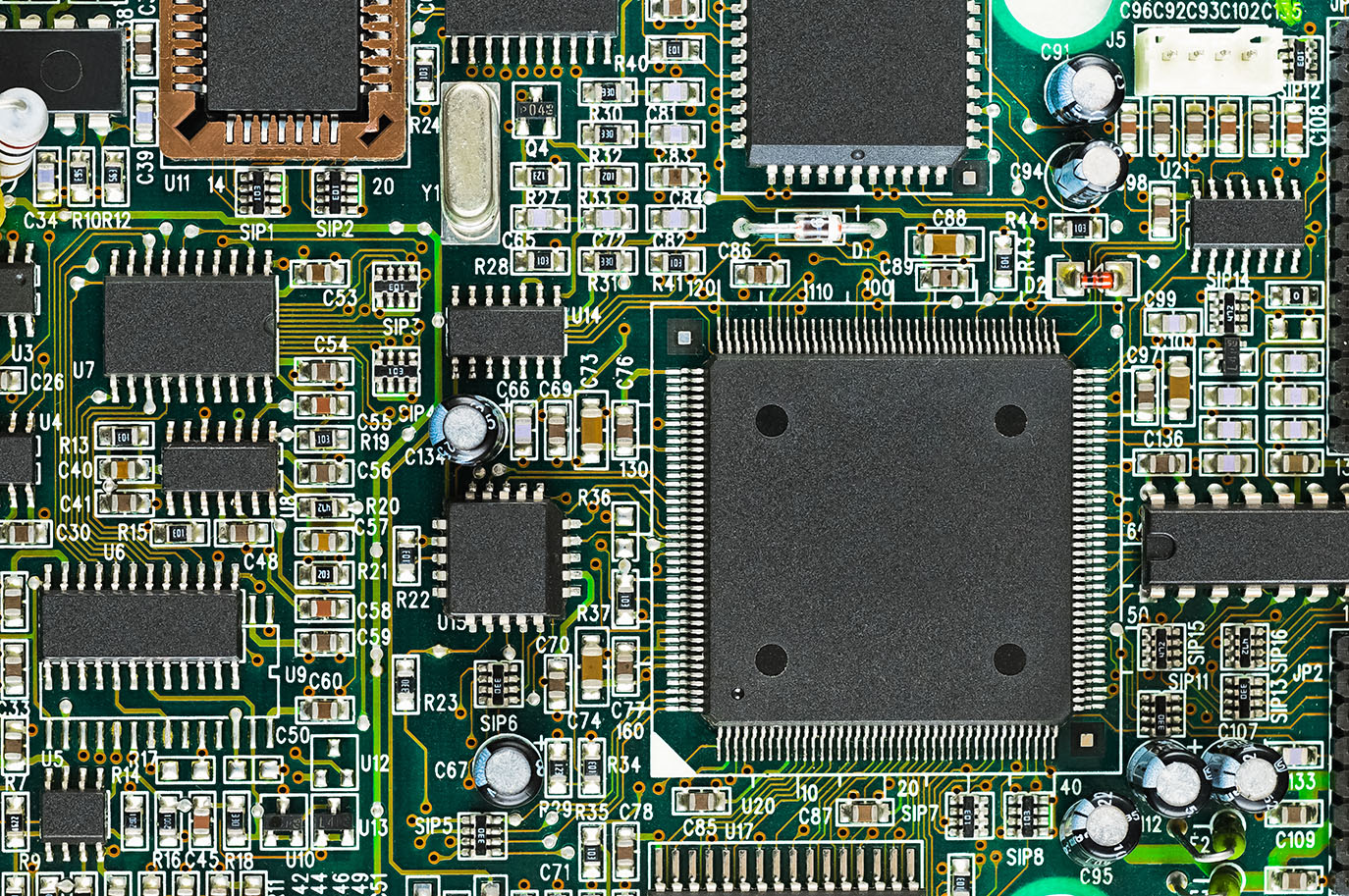

This assembly was manufactured using SMT & thru hole assembly methods and thoroughly tested. Although SMT technology is more heavily used today, thru-hole construction still provides a superior mechanical connection in boards that are subjected to extreme conditions. We provide both SMT and thru-hole board construction as needed.

The assembly was programmed and full functional tested in accordance with the industry standards and customer specifications. This customer has been a Circuits By US customer for over ten years because of our superior quality, on-time delivery and competitive pricing. Approximately 250 units are produced every month.

For additional details regarding this assembly manufactured for a medical respiratory application, please contact us directly.


Give us a call to discuss your projects. You'll be glad you did.
